FA16640

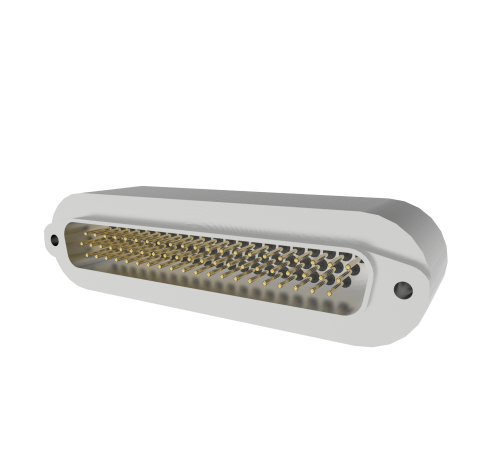

62 Pin High Density Sub D 24308 Series 500V 2 Amp Gold Plated Stn. Stl. Conductor Weld Without Plug

62 Pin High Density Sub D 24308 Series 500V 2 Amp Gold Plated Stn. Stl. Conductor Weld Without Plug
62 Pin High Density Sub D 24308 Series 500V 2 Amp Gold Plated Stn. Stl. Conductor Weld Without Plug
PART NUMBER:
FA16640
PRICE:
$538.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 62
Style Sub-D High Density
Voltage 500 Volts
Current 2.0 Amps
Mount Style Weld
Conductor Diameter 0.030 Inches
Conductor Material 300 Series Stn. Stl.
Temperature Range -269 to 450 °C
Pressure Maximum 900 psig
Plug Available

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
