FA13001

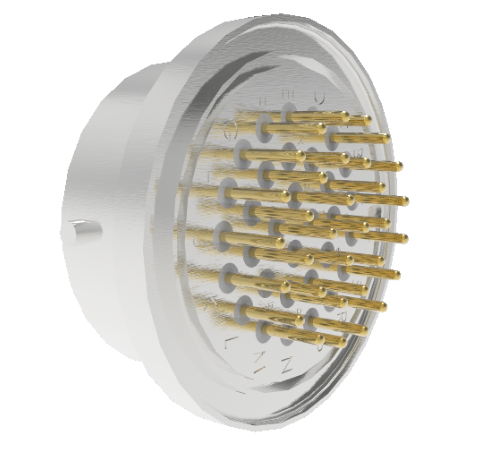

32 Pin Circular Connector, 26482 Series, 1kV, 3 Amp, Gold Plated Conductors, Single Ended, Weld in

32 Pin Circular Connector, 26482 Series, 1kV, 3 Amp, Gold Plated Conductors, Single Ended, Weld in
  • Number of Conductors:32
  • Style:Circular - 26482 Series
  • Voltage:1000 Volts
  • Current:3.0 Amps
  • Mount:Weld
32 Pin Circular Connector, 26482 Series, 1kV, 3 Amp, Gold Plated Conductors, Single Ended, Weld in
PART NUMBER:
FA13001
PRICE:
$262.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 32
Style Circular - 26482 Series
Voltage 1,000 Volts
Current 3.0 Amps
Mount Style Weld
Conductor Diameter 0.040 Inches
Conductor Material 300 Series Stn. Stl.
Temperature Range -269 to 450 °C
Pressure Maximum 375 psig
Plug Available

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
