FA13287

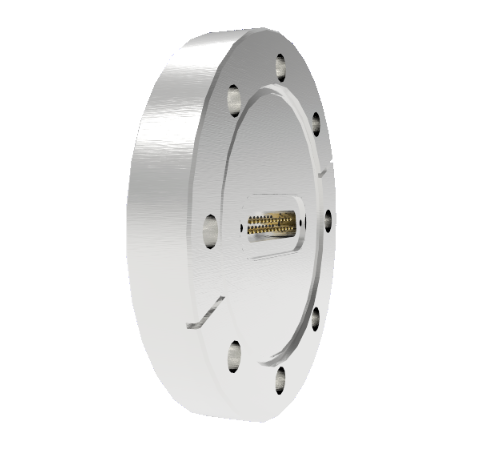

25 Pin Sub D 24308 Series 500V 3 Amp 0.040 Stn. Stl. Gold Plated Conductor in a CF4.50 Without Plug

25 Pin Sub D 24308 Series 500V 3 Amp 0.040 Stn. Stl. Gold Plated Conductor in a CF4.50 Without Plug
25 Pin Sub D 24308 Series 500V 3 Amp 0.040 Stn. Stl. Gold Plated Conductor in a CF4.50 Without Plug
PART NUMBER:
FA13287
PRICE:
$433.50 USD
Login to Download 3D
Product Specifications:
Number of Conductors 25
Style Sub-D - 24308 Series
Voltage 500 Volts
Current 3.0 Amps
Mount Style CF4.50
Conductor Diameter 0.040 Inches
Conductor Material 300 Series Stn. Stl.
Temperature Range -269 to 450 °C
Pressure Maximum 1200 psig
Plug Available

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
