FA14467-04

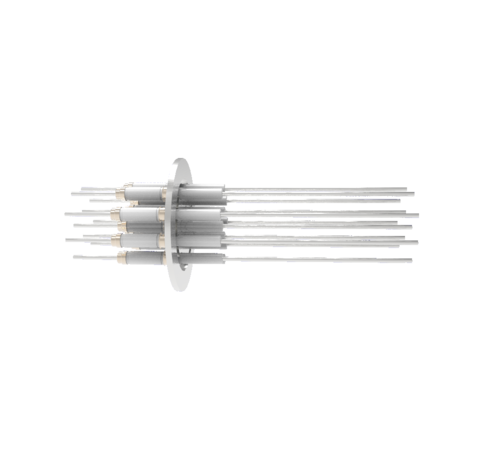

0.094 Conductor Diameter 12 Pin 12kV 3.6 Amp 304 Stn. Stl. Conductor in a KF50

0.094 Conductor Diameter 12 Pin 12kV 3.6 Amp 304 Stn. Stl. Conductor in a KF50
0.094 Conductor Diameter 12 Pin 12kV 3.6 Amp 304 Stn. Stl. Conductor in a KF50
PART NUMBER:
FA14467-04
PRICE:
$556.50 USD
Login to Download 3D
Product Specifications:
Number of Conductors 12
Style Power
Voltage 12,000 Volts
Current 3.6 Amps
Mount Style KF50
Conductor Diameter 0.094 Inches
Conductor Material 300 Series Stn. Stl.
Temperature Range -25 to 205 °C
Pressure Maximum 0 psig
Plug Other

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
