FA13103-04

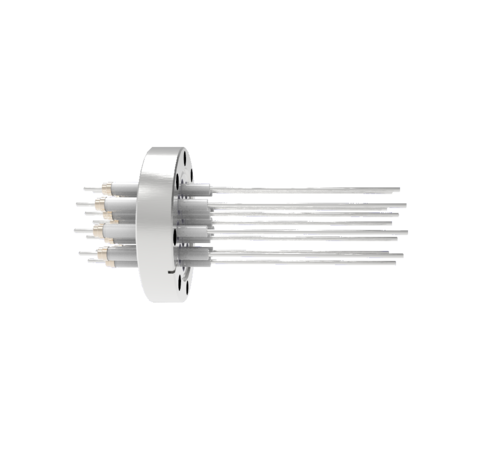

0.094 Conductor Diameter 12 Pin 20kV 3.6 Amp 304 Stn. Stl. Conductor in a CF3.375

0.094 Conductor Diameter 12 Pin 20kV 3.6 Amp 304 Stn. Stl. Conductor in a CF3.375
0.094 Conductor Diameter 12 Pin 20kV 3.6 Amp 304 Stn. Stl. Conductor in a CF3.375
PART NUMBER:
FA13103-04
PRICE:
$569.50 USD
Login to Download 3D
Product Specifications:
Number of Conductors 12
Style Power
Voltage 20,000 Volts
Current 3.6 Amps
Mount Style CF3.375
Conductor Diameter 0.094 Inches
Conductor Material 300 Series Stn. Stl.
Temperature Range -269 to 450 °C
Pressure Maximum 1500 psig
Plug Available

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Add to My List:
Login to create and save product lists.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
