FA13123-02

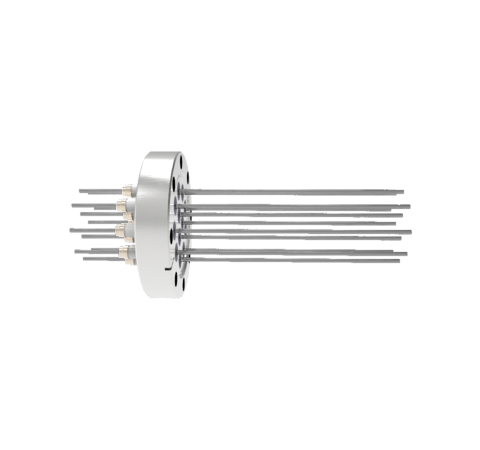

0.094 Conductor Diameter 12 Pin 5kV 28 Amp Molybdenum Conductor in a CF3.375

0.094 Conductor Diameter 12 Pin 5kV 28 Amp Molybdenum Conductor in a CF3.375
  • Number of Conductors:12
  • Style:Power
  • Voltage:5000 Volts
  • Current:28.0 Amps
  • Mount:CF3.375
0.094 Conductor Diameter 12 Pin 5kV 28 Amp Molybdenum Conductor in a CF3.375
PART NUMBER:
FA13123-02
PRICE:
$418.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 12
Style Power
Voltage 5,000 Volts
Current 28.0 Amps
Mount Style CF3.375
Conductor Diameter 0.094 Inches
Conductor Material Molybdenum
Temperature Range -269 to 450 °C
Pressure Maximum 1500 psi
Plug Other

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
