FA15165

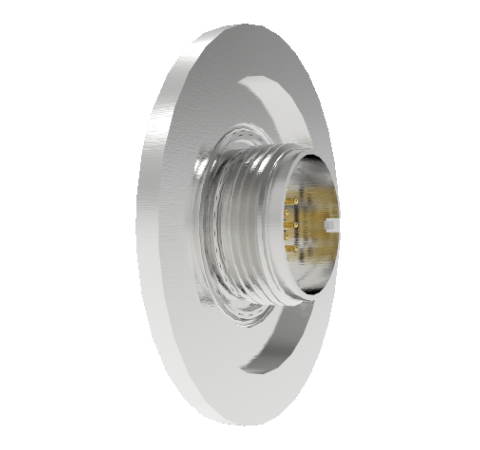

10 Pin Circular Connector, 26482 Series, 1kV, 5 Amp, Gold Plated Conductors, Double Ended, ISO KF40

10 Pin Circular Connector, 26482 Series, 1kV, 5 Amp, Gold Plated Conductors, Double Ended, ISO KF40
  • Number of Conductors:10
  • Style:Circular - 26482 Series
  • Voltage:1000 Volts
  • Current:5.0 Amps
  • Mount:KF40
10 Pin Circular Connector, 26482 Series, 1kV, 5 Amp, Gold Plated Conductors, Double Ended, ISO KF40
PART NUMBER:
FA15165
PRICE:
$294.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 10
Style Circular - 26482 Series
Voltage 1,000 Volts
Current 5.0 Amps
Mount Style KF40
Conductor Diameter 0.040 Inches
Conductor Material 300 Series Stn. Stl.
Temperature Range -25 to 205 °C
Pressure Maximum 0 psig
Plug Available

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.


Related Resources:

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
