FA13003

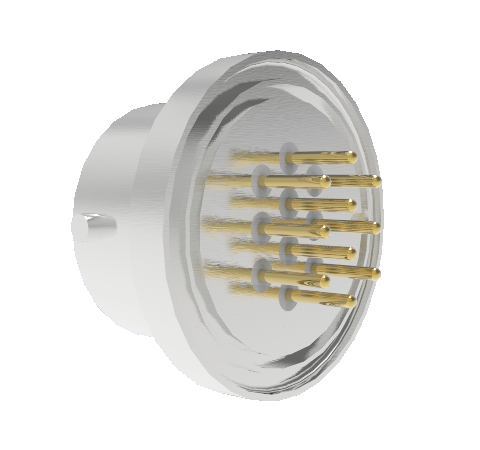

10 Pin Circular Connector, 26482 Series, 1kV, 3 Amp, Gold Plated Conductors, Single Ended, Weld in

10 Pin Circular Connector, 26482 Series, 1kV, 3 Amp, Gold Plated Conductors, Single Ended, Weld in
10 Pin Circular Connector, 26482 Series, 1kV, 3 Amp, Gold Plated Conductors, Single Ended, Weld in
PART NUMBER:
FA13003
PRICE:
$207.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 10
Style Circular - 26482 Series
Voltage 1,000 Volts
Current 5.0 Amps
Mount Style Weld
Conductor Diameter 0.040 Inches
Conductor Material 300 Series Stn. Stl.
Temperature Range -269 to 450 °C
Pressure Maximum 450 psig
Plug Available

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.


Related Resources:
Add to My List:
Login to create and save product lists.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
