FA12661

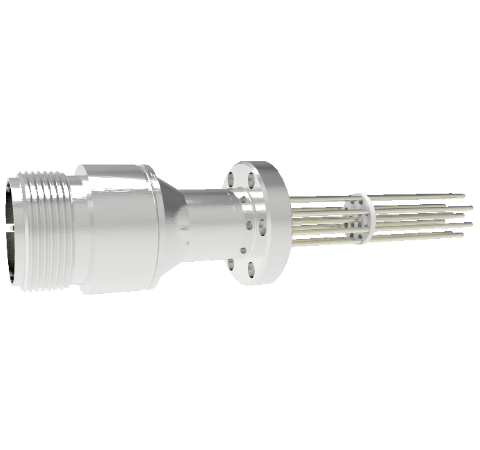

10 Pin 5015 Style Circular Connector, 700V, 4.8 Amp, Alumel Conductors in CF1.33 Flange Without Plug

10 Pin 5015 Style Circular Connector, 700V, 4.8 Amp, Alumel Conductors in CF1.33 Flange Without Plug
10 Pin 5015 Style Circular Connector, 700V, 4.8 Amp, Alumel Conductors in CF1.33 Flange Without Plug
PART NUMBER:
FA12661
PRICE:
$386.50 USD
Login to Download 3D
Product Specifications:
Number of Conductors 10
Style Circular - 5015 Series
Voltage 700 Volts
Current 4.8 Amps
Mount Style CF1.33
Conductor Diameter 0.062 Inches
Conductor Material Alumel
Temperature Range -269 to 450 °C
Pressure Maximum 500 psig
Plug Available

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Add to My List:
Login to create and save product lists.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
