FA16934

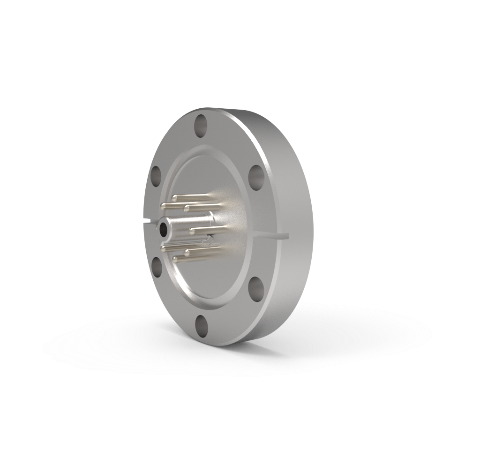

Octal Connector, 8 Pin, 350V, 5Amp, Alumel Conductors, Feedthrough in a CF2.75 Flange Without Plugs

Octal Connector, 8 Pin, 350V, 5Amp, Alumel Conductors, Feedthrough in a CF2.75 Flange Without Plugs
Octal Connector, 8 Pin, 350V, 5Amp, Alumel Conductors, Feedthrough in a CF2.75 Flange Without Plugs
PART NUMBER:
FA16934
PRICE:
$329.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 8
Style Octal
Voltage 350 Volts
Current 5.0 Amps
Mount Style CF2.75
Conductor Diameter 0.090 Inches
Conductor Material Alumel
Temperature Range -269 to 450 °C
Pressure Maximum 400 psig
Plug Available

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Add to My List:
Login to create and save product lists.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
