FA14260

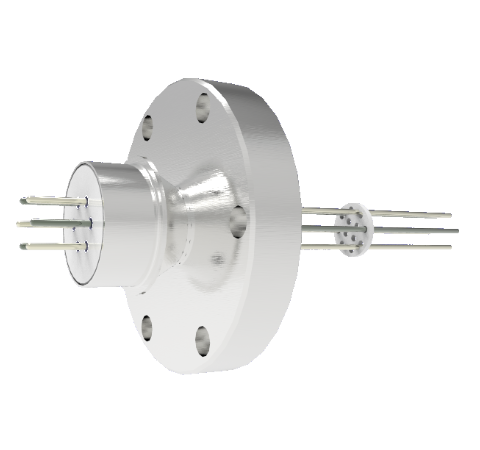

0.062 Conductor Diameter 6 Pin 5kV 4.8 Amp Alumel Conductor in a CF2.75

0.062 Conductor Diameter 6 Pin 5kV 4.8 Amp Alumel Conductor in a CF2.75
0.062 Conductor Diameter 6 Pin 5kV 4.8 Amp Alumel Conductor in a CF2.75
PART NUMBER:
FA14260
PRICE:
$247.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 6
Style Power
Voltage 5,000 Volts
Current 4.8 Amps
Mount Style CF2.75
Conductor Diameter 0.062 Inches
Conductor Material Alumel
Temperature Range -269 to 450 °C
Pressure Maximum 550 psig
Plug Other

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
