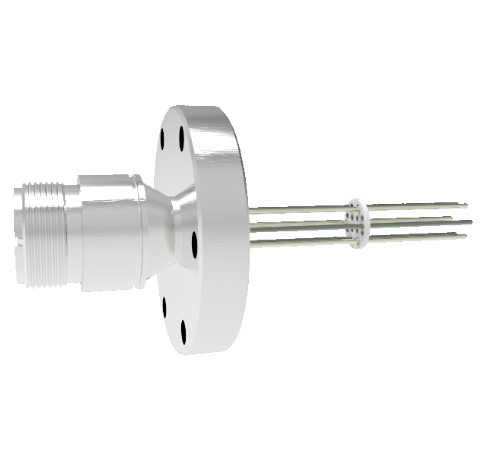

6 Pin 5015 Style Circular Connector, 700V, 4.8 Amp, Alumel Conductors in CF2.75 Flange Without Plug
Login to Download 3D
|Number of Conductors||6|
|Style||Circular - 5015 Series|
|Conductor Diameter||0.062 Inches|
|Temperature Range||-269 to 450 °C|
|Pressure Maximum||550 psig|
All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
