FA33217-1FF

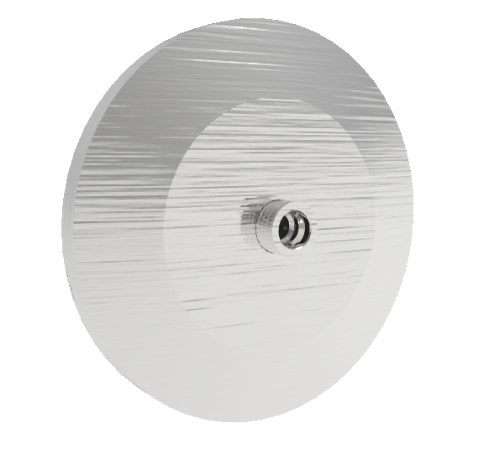

SMP 50 Ohm Grounded Shield Recessed Double Ended 500V KF25 Flange Without Plug

SMP 50 Ohm Grounded Shield Recessed Double Ended 500V KF25 Flange Without Plug
  • Number of Conductors:1
  • Style:SMP
  • Shield:Grounded
  • Single/Double Ended:Double
SMP 50 Ohm Grounded Shield Recessed Double Ended 500V KF25 Flange Without Plug
PART NUMBER:
FA33217-1FF
PRICE:
$155.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 1
Style SMP
Shield Grounded
Single/Double Ended Double
Voltage 500 Volts
Current Call
Mount Style KF25
Temperature Range -25 to 205 °C
Pressure Maximum Call for psig
Plug Other
Impedance 50 Ohm Matched

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.


Related Resources:

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
