FA14395-02

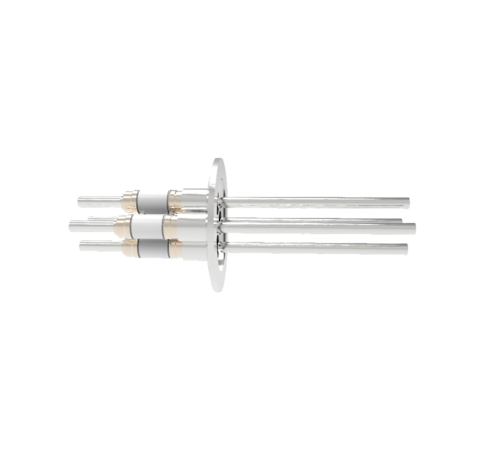

12kV Nickel Tube Feedthrough, 0.250 Inch Conductor Diameter, 4 Pin on ISO KF50 Quick Flange

12kV Nickel Tube Feedthrough, 0.250 Inch Conductor Diameter, 4 Pin on ISO KF50 Quick Flange
  • Number of Conductors:4
  • Style:Power
  • Voltage: 12000 Volts
  • Current: Call
  • Mount:KF50
12kV Nickel Tube Feedthrough, 0.250 Inch Conductor Diameter, 4 Pin on ISO KF50 Quick Flange
PART NUMBER:
FA14395-02
PRICE:
$352.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 4
Style Power
Voltage 12,000 Volts
Current Call
Mount Style KF50
Conductor Diameter 0.250 Inches
Conductor Material Nickel
Temperature Range -25 to 205 °C
Pressure Maximum Call for psig
Plug Other

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
