KT13692

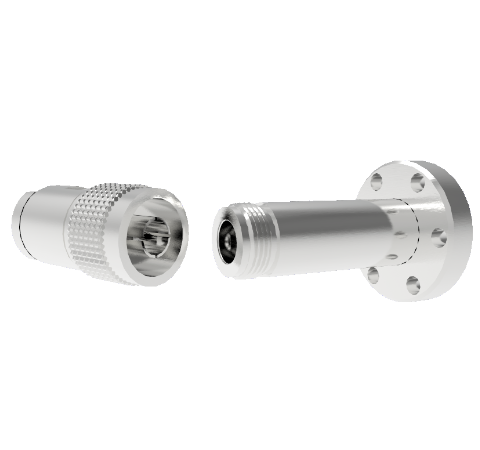

Type N Grounded Shield Recessed 1.5kV 3.6 Amp 0.094 304 Stn. Stl. Conductor CF1.33 Flange With Plug

Type N Grounded Shield Recessed 1.5kV 3.6 Amp 0.094 304 Stn. Stl. Conductor CF1.33 Flange With Plug
  • Number of Conductors:1
  • Style:N
  • Shield:Grounded
  • Single/Double Ended:Single
Type N Grounded Shield Recessed 1.5kV 3.6 Amp 0.094 304 Stn. Stl. Conductor CF1.33 Flange With Plug
PART NUMBER:
KT13692
PRICE:
$198.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 1
Style N
Shield Grounded
Single/Double Ended Single
Voltage 1,500 Volts
Current 3.6 Amps
Mount Style CF1.33
Temperature Range -65 to 165 °C
Pressure Maximum 1800 psig
Plug Included
Impedance Not Matched

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
