FA16840

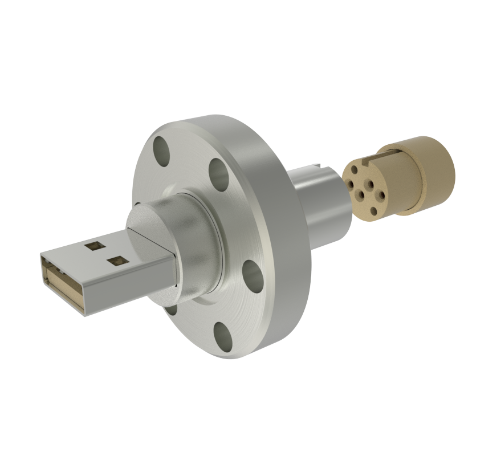

USB Compatible, Single ended Feedthrough, 30V, 1 Amp, in a CF1.33 Conflat Flange With Vacuum Plug
Product Specifications:
| Number of Conductors | 4 |
| Style | USB Hermetic |
| Voltage | 30 Volts |
| Current | 1.0 Amps |
| Mount Style | CF1.33 |
| Conductor Diameter | N/A Inches |
| Conductor Material | 300 Series Stn. Stl. |
| Temperature Range | -269 to 200 °C |
| Pressure Maximum | 500 psig |
| Plug | Included |
All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
