FA13792-04

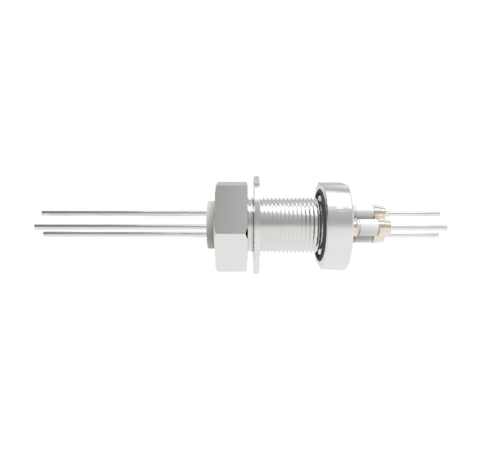

3 Pin 2kV Baseplate Feedthrough 3.6 Amp 0.094 304 Stn. Stl. Conductor 1 inch Bolt

3 Pin 2kV Baseplate Feedthrough 3.6 Amp 0.094 304 Stn. Stl. Conductor 1 inch Bolt
  • Number of Conductors:3
  • Style:Power
  • Voltage: 2000 Volts
  • Current: 3.6 Amps
  • Mount:Baseplate 1 Inch
3 Pin 2kV Baseplate Feedthrough 3.6 Amp 0.094 304 Stn. Stl. Conductor 1 inch Bolt
PART NUMBER:
FA13792-04
PRICE:
$273.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 3
Style Power
Voltage 2,000 Volts
Current 3.6 Amps
Mount Style Baseplate 1 Inch
Conductor Diameter 0.094 Inches
Conductor Material 300 Series Stn. Stl.
Temperature Range -25 to 205 °C
Pressure Maximum 200 psig
Plug Other

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
