KT10824

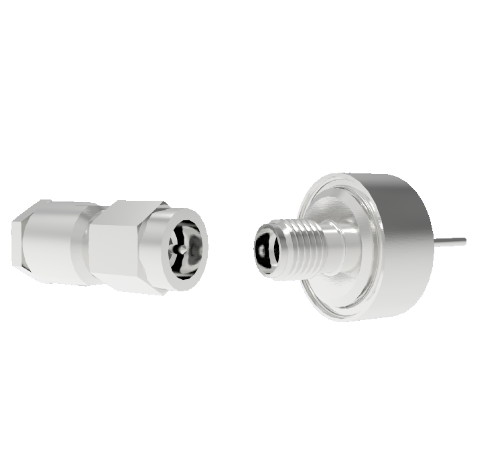

SMA 50 Ohm Grounded Shield Recessed 500V 0.8 Amp 0.040 330 Stn Stl Conductor Weld With Plug
![SMA 50 Ohm Grounded Shield Recessed 500V 0.8 Amp 0.040 330 Stn Stl Conductor Weld With Plug](https://www.solidsealing.com/img/products/image-201113095829441.png)
![SMA 50 Ohm Grounded Shield Recessed 500V 0.8 Amp 0.040 330 Stn Stl Conductor Weld With Plug](https://www.solidsealing.com/img/products/image-201113095829441.png)
Product Specifications:
Number of Conductors | 1 |
Style | SMA |
Shield | Grounded |
Single/Double Ended | Single |
Voltage | 500 Volts |
Current | 0.8 Amps |
Mount Style | Weld |
Temperature Range | -65 to 165 °C |
Pressure Maximum | 1400 psig |
Plug | Included |
Impedance | 50 Ohm Matched |
All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
