FA11638-03

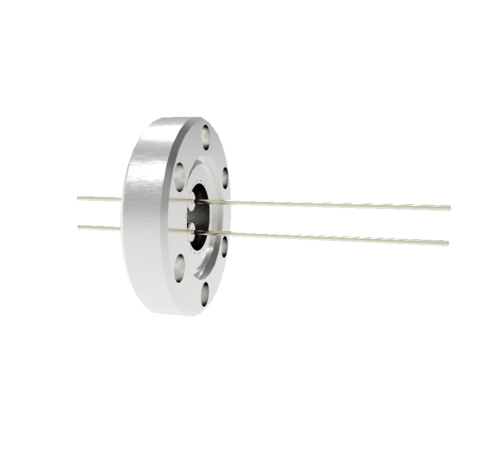

2 Pin, 0.032 Inch Diameter Nickel Conductors, 2kV, 5 Amp Feedthrough on CF1.33 Conflat Flange

2 Pin, 0.032 Inch Diameter Nickel Conductors, 2kV, 5 Amp Feedthrough on CF1.33 Conflat Flange
2 Pin, 0.032 Inch Diameter Nickel Conductors, 2kV, 5 Amp Feedthrough on CF1.33 Conflat Flange
PART NUMBER:
FA11638-03
PRICE:
$126.50 USD
Login to Download 3D
Product Specifications:
Number of Conductors 2
Style Power
Voltage 2,000 Volts
Current 5.0 Amps
Mount Style CF1.33
Conductor Diameter 0.032 Inches
Conductor Material Nickel
Temperature Range -269 to 450 °C
Pressure Maximum 1400 psig
Plug Other

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
