FA11650-02

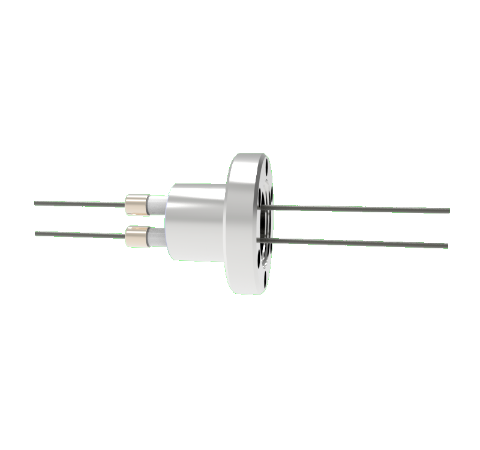

0.050 Conductor Diameter 2 Pin 6kV 13.5 Amp Molybdenum Conductor in a CF1.33

0.050 Conductor Diameter 2 Pin 6kV 13.5 Amp Molybdenum Conductor in a CF1.33
0.050 Conductor Diameter 2 Pin 6kV 13.5 Amp Molybdenum Conductor in a CF1.33
PART NUMBER:
FA11650-02
PRICE:
$133.50 USD
Login to Download 3D
Product Specifications:
Number of Conductors 2
Style Power
Voltage 6,000 Volts
Current 13.5 Amps
Mount Style CF1.33
Conductor Diameter 0.050 Inches
Conductor Material Molybdenum
Temperature Range -269 to 450 °C
Pressure Maximum 1250 psig
Plug Other

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Add to My List:
Login to create and save product lists.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
