FA14055-04

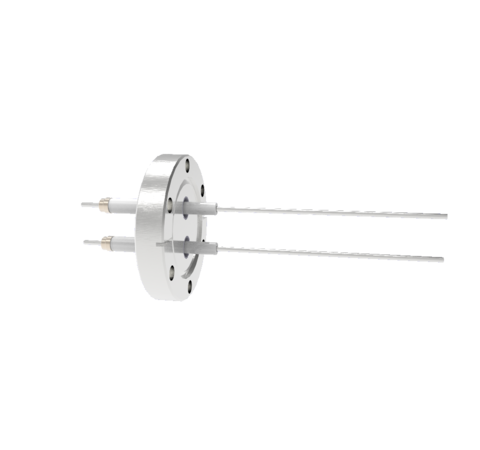

0.094 Conductor Diameter 2 Pin 20kV 3.6 Amp 304 Stn. Stl. Conductor in a CF2.75

0.094 Conductor Diameter 2 Pin 20kV 3.6 Amp 304 Stn. Stl. Conductor in a CF2.75
  • Number of Conductors:2
  • Style:Power
  • Voltage: 20000 Volts
  • Current: 3.6 Amps
  • Mount:CF2.75
0.094 Conductor Diameter 2 Pin 20kV 3.6 Amp 304 Stn. Stl. Conductor in a CF2.75
PART NUMBER:
FA14055-04
PRICE:
$176.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 2
Style Power
Voltage 20,000 Volts
Current 3.6 Amps
Mount Style CF2.75
Conductor Diameter 0.094 Inches
Conductor Material 300 Series Stn. Stl.
Temperature Range -269 to 450 °C
Pressure Maximum 1500 psig
Plug Available

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
