FA14465

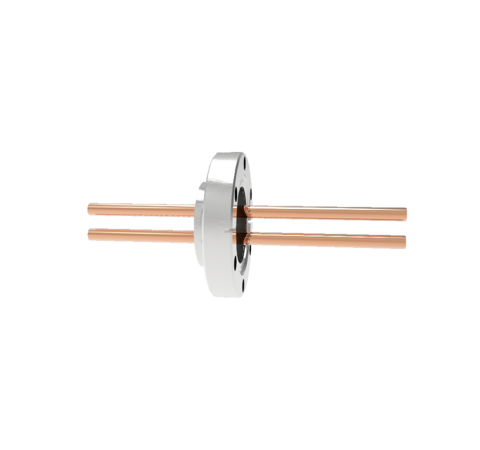

8kV Copper Tube Feedthrough, 0.250 Inch Conductor Diameter, 2 Pin on CF2.75 Conflat Flange

8kV Copper Tube Feedthrough, 0.250 Inch Conductor Diameter, 2 Pin on CF2.75 Conflat Flange
  • Number of Conductors:2
  • Style:RF Power
  • Voltage: 8000 Volts
  • Current: Call
  • Mount:CF2.75
8kV Copper Tube Feedthrough, 0.250 Inch Conductor Diameter, 2 Pin on CF2.75 Conflat Flange
PART NUMBER:
FA14465
PRICE:
$572.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 2
Style RF Power
Voltage 8,000 Volts
Current Call
Mount Style CF2.75
Conductor Diameter 0.250 Inches
Conductor Material Copper
Temperature Range -55 to 350 °C
Pressure Maximum 125 psig
Plug Other

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
