KT20673

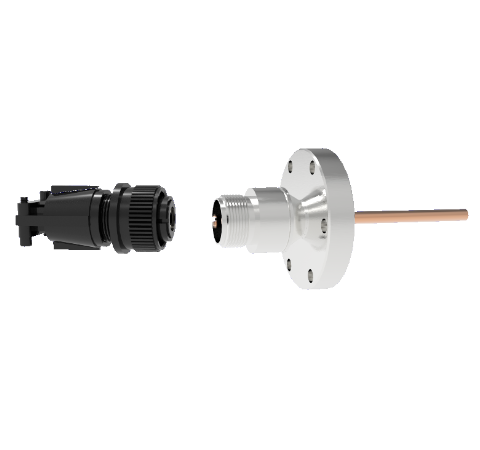

1 Pin, 120 Amp Circular Connector, 700V, Copper with Silver Plating Air Side in a CF2.75 With Plug

1 Pin, 120 Amp Circular Connector, 700V, Copper with Silver Plating Air Side in a CF2.75 With Plug
1 Pin, 120 Amp Circular Connector, 700V, Copper with Silver Plating Air Side in a CF2.75 With Plug
PART NUMBER:
KT20673
PRICE:
$417.50 USD
Contact Us for 3D Model
Product Specifications:
Number of Conductors 1
Style High Current Circular
Voltage 700 Volts
Current 120.0 Amps
Mount Style CF2.75
Conductor Diameter 0.250 Inches
Conductor Material Copper
Temperature Range -55 to 125 °C
Pressure Maximum 500 psig
Plug Included

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Add to My List:
Login to create and save product lists.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
