KT13080-02

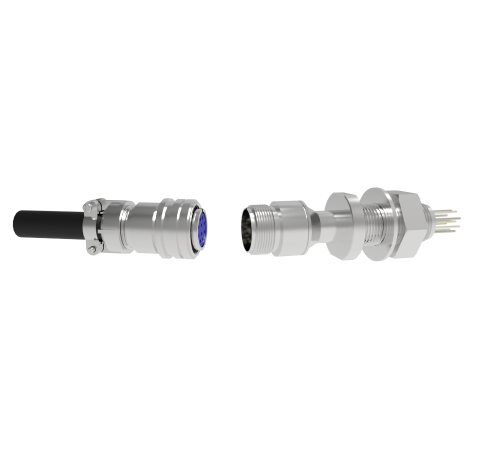

Type K 5 Pair Baseplate Thermocouple Feedthrough on 1 inch Bolt With Plug

Type K 5 Pair Baseplate Thermocouple Feedthrough on 1 inch Bolt With Plug
Type K 5 Pair Baseplate Thermocouple Feedthrough on 1 inch Bolt With Plug
PART NUMBER:
KT13080-02
PRICE:
$531.50 USD
Drawing Not Available
Contact Us for 3D Model
Product Specifications:
Number of Pairs 5
Thermocouple Type K
Style Circular - 5015 Series
With Power? TC Only
Voltage 10 Volts
Current 4.8 Amps
Mount Style Baseplate 1 Inch
Temperature Range -55 to 125 °C
Pressure Maximum 200 psig
Plug Included

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
