FA15960

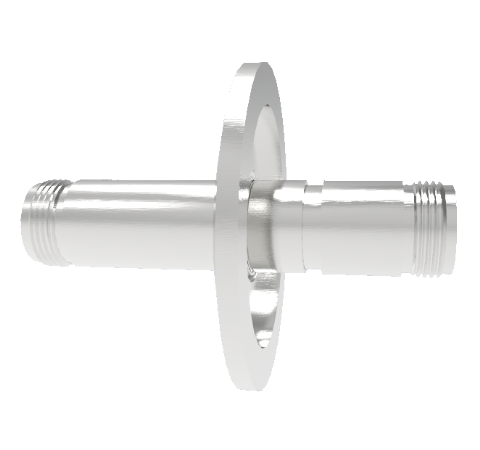

Type N Grounded Shield Recessed Double Ended 1.5kV 3.6 Amp 0.094 304 Stn. Stl. KF40 Without Plug

Type N Grounded Shield Recessed Double Ended 1.5kV 3.6 Amp 0.094 304 Stn. Stl. KF40 Without Plug
  • Number of Conductors:1
  • Style:N
  • Shield:Grounded
  • Single/Double Ended:Single
Type N Grounded Shield Recessed Double Ended 1.5kV 3.6 Amp 0.094 304 Stn. Stl. KF40 Without Plug
PART NUMBER:
FA15960
PRICE:
$335.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 1
Style N
Shield Grounded
Single/Double Ended Single
Voltage 1,500 Volts
Current 3.6 Amps
Mount Style KF40
Temperature Range -25 to 205 °C
Pressure Maximum 0 psig
Plug Available
Impedance Not Matched

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
