FA29862

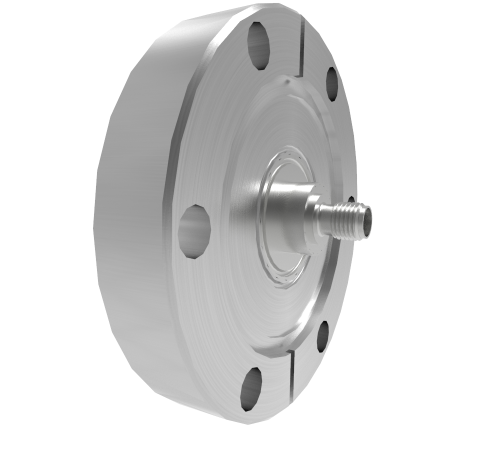

Type N to SMA 50 Ohm Grounded Shield 1.5kV 1 Amp CF2.75 Flange Without Type N Air Side Plug

Type N to SMA  50 Ohm Grounded Shield 1.5kV 1 Amp CF2.75 Flange Without Type N Air Side Plug
Type N to SMA  50 Ohm Grounded Shield 1.5kV 1 Amp CF2.75 Flange Without Type N Air Side Plug
PART NUMBER:
FA29862
PRICE:
$430.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 1
Style N to SMA
Shield Grounded
Single/Double Ended Single
Voltage 1,500 Volts
Current 1.0 Amps
Mount Style CF2.75
Temperature Range -269 to 350 °C
Pressure Maximum 1400 psig
Plug Available
Impedance 50 Ohm Matched

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.


Related Resources:
Add to My List:
Login to create and save product lists.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
