FA13192-02

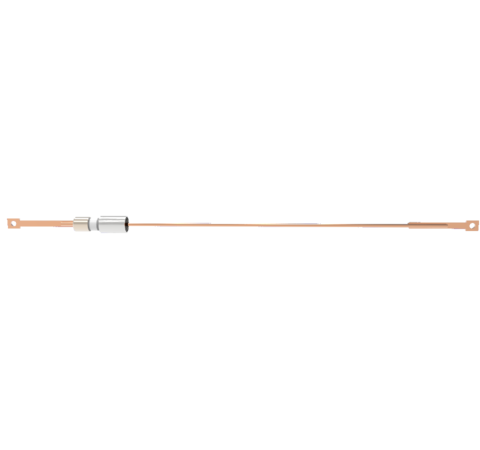

Single Thermocouple Lead, Iron, Weld in with Set Screws for loop type

Single Thermocouple Lead, Iron, Weld in with Set Screws for loop type
Single Thermocouple Lead, Iron, Weld in with Set Screws for loop type
PART NUMBER:
FA13192-02
PRICE:
$48.50 USD
Login to Download 3D
Product Specifications:
Number of Pairs N/A
Thermocouple Type Single Lead
Style Spade Type
With Power? TC Only
Voltage 10 Volts
Current Call
Mount Style Weld
Temperature Range -269 to 450 °C
Pressure Maximum 3500 psig
Plug Other

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Add to My List:
Login to create and save product lists.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
