FA12489-02

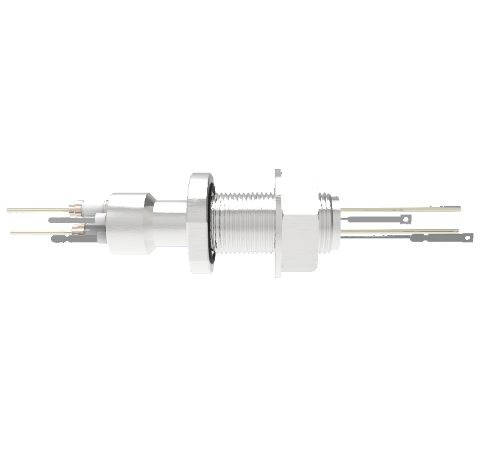

Type J 1 Pair Thermocouple Baseplate 5kV 55 Amp 0.094 Copper Conductor 1 inch Bolt With Spade Plug

Type J 1 Pair Thermocouple Baseplate 5kV 55 Amp 0.094 Copper Conductor 1 inch Bolt With Spade Plug
Type J 1 Pair Thermocouple Baseplate 5kV 55 Amp 0.094 Copper Conductor 1 inch Bolt With Spade Plug
PART NUMBER:
FA12489-02
PRICE:
$411.50 USD
Login to Download 3D
Product Specifications:
Number of Pairs 1
Thermocouple Type J
Style Spade Type
With Power? With Power
Voltage 5,000 Volts
Current 55.0 Amps
Mount Style Baseplate 1 Inch
Temperature Range -25 to 205 °C
Pressure Maximum 200 psig
Plug Included

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
