FA24072

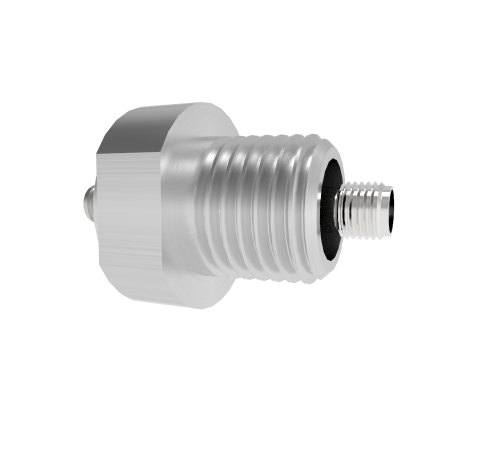

SMA 50 Ohm Grounded Shield 500V 0.8 Amp NPT 3/8 Flange Without Plug

SMA 50 Ohm Grounded Shield 500V 0.8 Amp NPT 3/8 Flange Without Plug
SMA 50 Ohm Grounded Shield 500V 0.8 Amp NPT 3/8 Flange Without Plug
PART NUMBER:
FA24072
PRICE:
$329.50 USD
Login to Download 3D
Product Specifications:
Number of Conductors 1
Style SMA
Shield Grounded
Single/Double Ended Double
Voltage 500 Volts
Current 0.8 Amps
Mount Style NPT 3/8
Temperature Range -269 to 350 °C
Pressure Maximum 1400 psig
Plug Available
Impedance 50 Ohm Matched

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
