FA23829

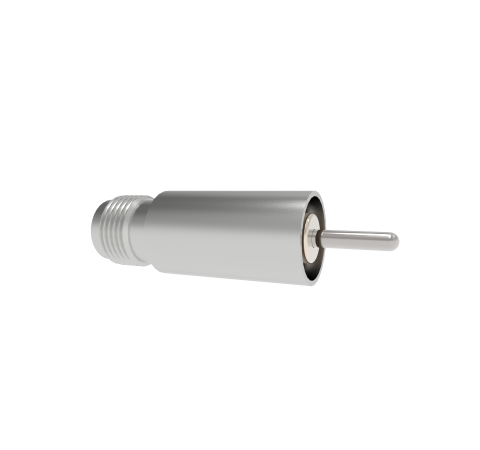

TNC 500V 3.6 Amp 0.094 304 Stn. Stl. Conductor Weld

TNC 500V 3.6 Amp 0.094 304 Stn. Stl. Conductor Weld
  • Number of Conductors:1
  • Style:TNC
  • Shield:Grounded
  • Single/Double Ended:Single
TNC 500V 3.6 Amp 0.094 304 Stn. Stl. Conductor Weld
PART NUMBER:
FA23829
PRICE:
$66.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 1
Style TNC
Shield Grounded
Single/Double Ended Single
Voltage 500 Volts
Current 3.6 Amps
Mount Style Weld
Temperature Range -269 to 450 °C
Pressure Maximum Call for psig
Plug Available
Impedance Not Matched

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Add to My List:
Login to create and save product lists.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
