FA31289-02

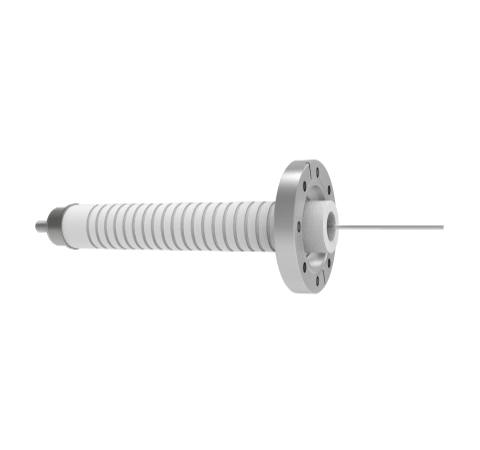

Single Pin, 0.154 inch Conductor Diameter, 125KV, 6.5 Amp, Stn Stl Conductor in a CF4.50 Flange

Single Pin, 0.154 inch Conductor Diameter, 125KV, 6.5 Amp, Stn Stl Conductor in a CF4.50 Flange
Single Pin, 0.154 inch Conductor Diameter, 125KV, 6.5 Amp, Stn Stl Conductor in a CF4.50 Flange
PART NUMBER:
FA31289-02
PRICE:
CALL FOR PRICE
Login to Download 3D
Product Specifications:
Number of Conductors 1
Style Power
Voltage 125,000 Volts
Current 6.5 Amps
Mount Style CF4.50
Conductor Diameter 0.154 Inches
Conductor Material 300 Series Stn. Stl.
Temperature Range -55 to 450 °C
Pressure Maximum Call for psig
Plug Other

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
