FA42164

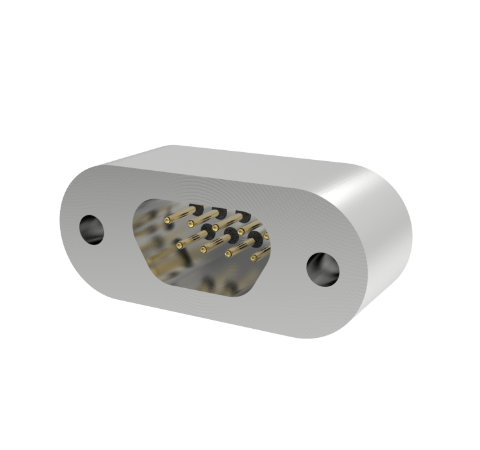

Micro D+ 9 Pin Connector, 250V, 0.018 inch Diameter Gold Plated Stn. Stl. Solder Cup Conductor, Laser Weld
![Micro D+ 9 Pin Connector, 250V, 0.018 inch Diameter Gold Plated Stn. Stl. Solder Cup Conductor, Laser Weld](https://www.solidsealing.com/img/products/image-210421034535921.png)
![Micro D+ 9 Pin Connector, 250V, 0.018 inch Diameter Gold Plated Stn. Stl. Solder Cup Conductor, Laser Weld](https://www.solidsealing.com/img/products/image-210421034535921.png)
Product Specifications:
Number of Conductors | 9 |
Style | Micro-D Plus |
Voltage | 250 Volts |
Current | 2.3 Amps |
Mount Style | Laser Weld |
Conductor Diameter | 0.018 Inches |
Conductor Material | 300 Series Stn. Stl. |
Temperature Range | -269 to 450 °C |
Pressure Maximum | Call for psig |
Plug | Available |
All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
Related Resources:
Add to My List:
Login to create and save product lists.
Get in touch to place an order
Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
