FA26703

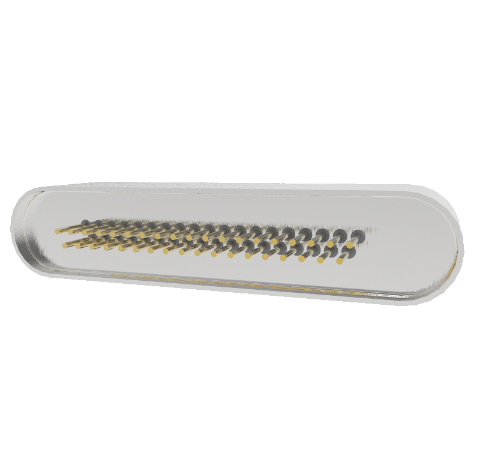

37 Pin Micro D 375V 1 Amp 0.018 Stn. Stl. Gold Plated Conductor Weld

37 Pin Micro D 375V 1 Amp 0.018 Stn. Stl. Gold Plated Conductor Weld
37 Pin Micro D 375V 1 Amp 0.018 Stn. Stl. Gold Plated Conductor Weld
PART NUMBER:
FA26703
PRICE:
$484.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 37
Style Micro-D
Voltage 375 Volts
Current 1.0 Amps
Mount Style Weld
Conductor Diameter 0.018 Inches
Conductor Material 300 Series Stn. Stl.
Temperature Range -269 to 450 °C
Pressure Maximum 1200 psig
Plug Available

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
