FA26702

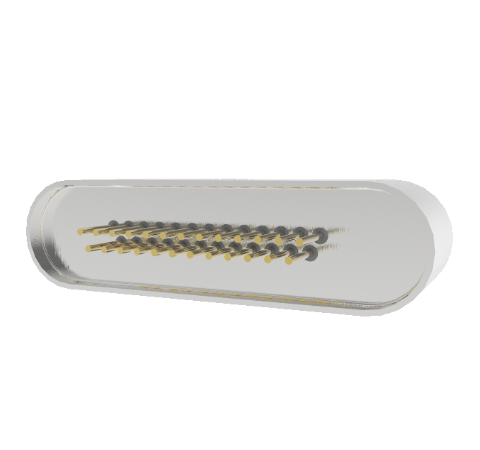

25 Pin Micro D 375V 1 Amp 0.018 Stn. Stl. Gold Plated Conductor Weld

25 Pin Micro D 375V 1 Amp 0.018 Stn. Stl. Gold Plated Conductor Weld
  • Number of Conductors:25
  • Style:Micro-D
  • Voltage: 375 Volts
  • Current: 1.0 Amps
  • Mount:Weld
25 Pin Micro D 375V 1 Amp 0.018 Stn. Stl. Gold Plated Conductor Weld
PART NUMBER:
FA26702
PRICE:
$341.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 25
Style Micro-D
Voltage 375 Volts
Current 1.0 Amps
Mount Style Weld
Conductor Diameter 0.018 Inches
Conductor Material 300 Series Stn. Stl.
Temperature Range -269 to 450 °C
Pressure Maximum 1300 psig
Plug Available

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
