KT19550

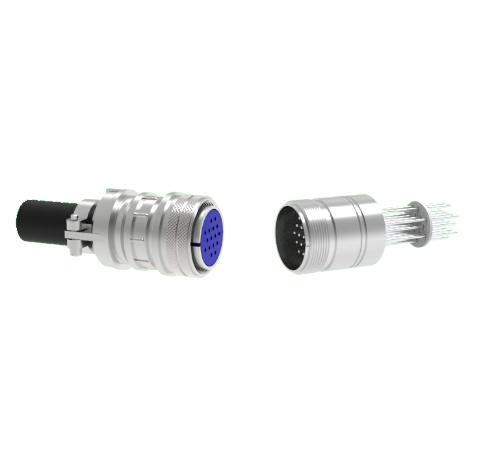

16 Pin 5015 Style Circular Connector, 700V, 4.8 Amp, Alumel Conductors in Weld adapter With Plug
Product Specifications:
Number of Conductors | 16 |
Style | Circular - 5015 Series |
Voltage | 700 Volts |
Current | 4.8 Amps |
Mount Style | Weld |
Conductor Diameter | 0.062 Inches |
Conductor Material | Alumel |
Temperature Range | -55 to 125 °C |
Pressure Maximum | 300 psig |
Plug | Included |
All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
