FA18765

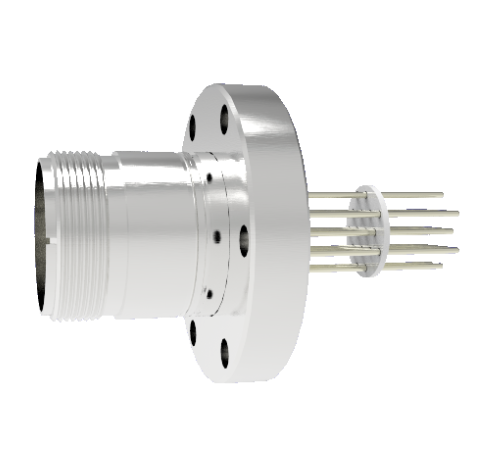

16 Pin 5015 Style Circular Connector, 700V, 4.8 Amp, Alumel Conductors in a CF2.75 Without Plug

16 Pin 5015 Style Circular Connector, 700V, 4.8 Amp, Alumel Conductors in a CF2.75 Without Plug
  • Number of Conductors:16
  • Style:Circular - 5015 Series
  • Voltage: 700 Volts
  • Current: 4.8 Amps
  • Mount:CF2.75
16 Pin 5015 Style Circular Connector, 700V, 4.8 Amp, Alumel Conductors in a CF2.75 Without Plug
PART NUMBER:
FA18765
PRICE:
$686.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 16
Style Circular - 5015 Series
Voltage 700 Volts
Current 4.8 Amps
Mount Style CF2.75
Conductor Diameter 0.062 Inches
Conductor Material Alumel
Temperature Range -269 to 450 °C
Pressure Maximum 300 psig
Plug Available

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Add to My List:
Login to create and save product lists.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
