FA15738

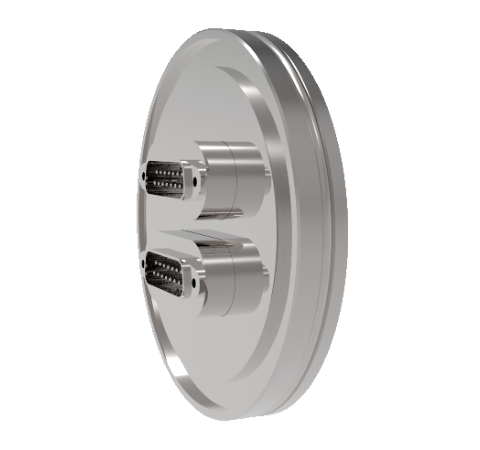

15 Pin Sub D 24308 Series 500V 5 Amp 0.040 Stn. Stl. Gold Plated Conductor in ISO LF63 Without Plug

15 Pin Sub D 24308 Series 500V 5 Amp 0.040 Stn. Stl. Gold Plated Conductor in ISO LF63 Without Plug
  • Number of Conductors:15
  • Style:Sub-D - 24308 Series
  • Voltage:500 Volts
  • Current:5.0 Amps
  • Mount:ISO LF63
15 Pin Sub D 24308 Series 500V 5 Amp 0.040 Stn. Stl. Gold Plated Conductor in ISO LF63 Without Plug
PART NUMBER:
FA15738
PRICE:
CALL FOR PRICE
Login to Download 3D
Product Specifications:
Number of Conductors 15
Style Sub-D - 24308 Series
Voltage 500 Volts
Current 5.0 Amps
Mount Style ISO LF63
Conductor Diameter 0.040 Inches
Conductor Material 300 Series Stn. Stl.
Temperature Range -25 to 205 °C
Pressure Maximum 0 psig
Plug Available

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
