FA15103-04

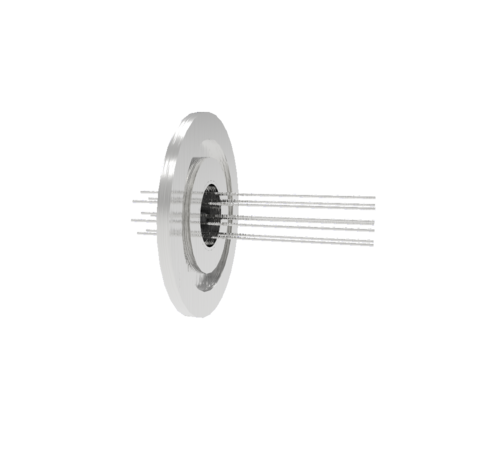

0.032 Conductor Diameter 8 Pin 1.5kV 1.1 Amp 304 Stn. Stl. Conductor in a KF40
Product Specifications:
Number of Conductors | 8 |
Style | Power |
Voltage | 1,500 Volts |
Current | 1.1 Amps |
Mount Style | KF40 |
Conductor Diameter | 0.032 Inches |
Conductor Material | 300 Series Stn. Stl. |
Temperature Range | -25 to 205 °C |
Pressure Maximum | Call for psig |
Plug | Other |
All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
Add to My List:
Login to create and save product lists.
Get in touch to place an order
Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
