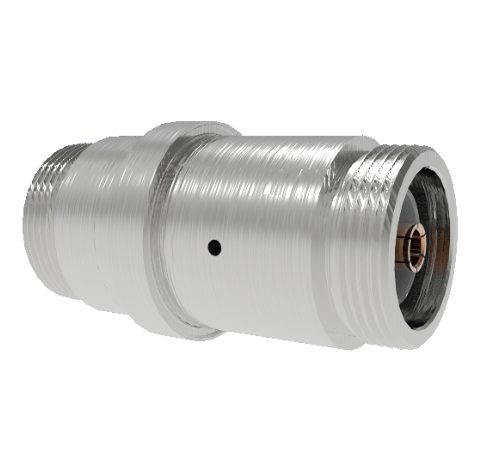

7/16 Coaxial Connector, Weld Without Plug

7/16 Coaxial Connector, Weld Without Plug
  • Number of Conductors:1
  • Style:7/16
  • Shield:Grounded
  • Single/Double Ended:Single
7/16 Coaxial Connector, Weld Without Plug
Contact Us for 3D Model
Product Specifications:
Number of Conductors 1
Style 7/16
Shield Grounded
Single/Double Ended Single
Voltage 2,700 Volts
Current Call
Mount Style Weld
Temperature Range -269 to 200 °C
Pressure Maximum Call for psig
Plug Available
Impedance Not Matched

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Add to My List:
Login to create and save product lists.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
