FA33953-03

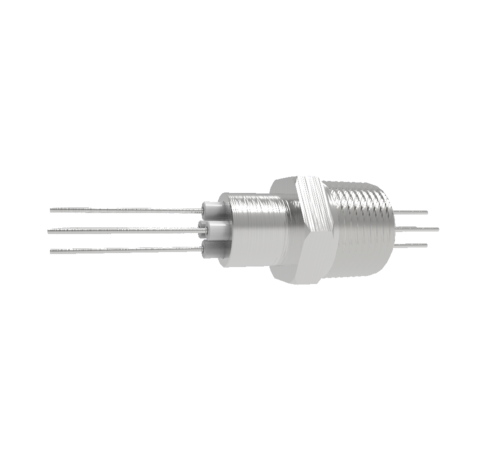

0.050 Conductor Diameter 4 Pin 3kV 8.2 Amp Nickel Conductor in a NPT 3/4

0.050 Conductor Diameter 4 Pin 3kV 8.2 Amp Nickel Conductor in a NPT 3/4
0.050 Conductor Diameter 4 Pin 3kV 8.2 Amp Nickel Conductor in a NPT 3/4
PART NUMBER:
FA33953-03
PRICE:
CALL FOR PRICE
Login to Download 3D
Product Specifications:
Number of Conductors 4
Style Power
Voltage 3,000 Volts
Current 8.2 Amps
Mount Style NPT 3/4
Conductor Diameter 0.050 Inches
Conductor Material Nickel
Temperature Range -260 to 230 °C
Pressure Maximum 1250 psig
Plug Other

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
