FA15499-03

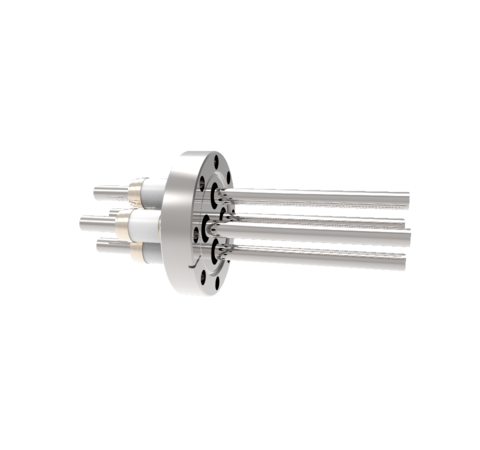

0.375 Conductor Diameter 4 Pin 8kV 98 Amp Nickel Conductor in a CF3.38

0.375 Conductor Diameter 4 Pin 8kV 98 Amp Nickel Conductor in a CF3.38
  • Number of Conductors:4
  • Style:Power
  • Voltage: 8000 Volts
  • Current: 98.0 Amps
  • Mount:CF3.375
0.375 Conductor Diameter 4 Pin 8kV 98 Amp Nickel Conductor in a CF3.38
PART NUMBER:
FA15499-03
PRICE:
CALL FOR PRICE
Login to Download 3D
Product Specifications:
Number of Conductors 4
Style Power
Voltage 8,000 Volts
Current 98.0 Amps
Mount Style CF3.375
Conductor Diameter 0.375 Inches
Conductor Material Nickel
Temperature Range -269 to 450 °C
Pressure Maximum 500 psig
Plug Other

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
