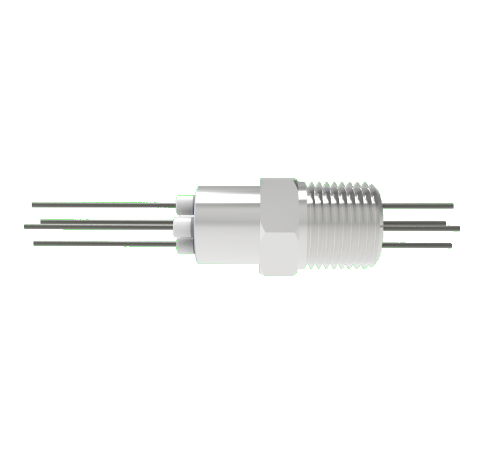

FA23946-02
0.050 Conductor Diameter 4 Pin 3kV 13.5 Amp Molybdenum Conductor in a NPT 1/2
Product Specifications:
Number of Conductors | 4 |
Style | Power |
Voltage | 3,000 Volts |
Current | 13.5 Amps |
Mount Style | NPT 1/2 |
Conductor Diameter | 0.050 Inches |
Conductor Material | Molybdenum |
Temperature Range | -260 to 230 °C |
Pressure Maximum | 1250 psig |
Plug | Other |
All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
Add to My List:
Login to create and save product lists.
Get in touch to place an order
Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
