KT13302-02

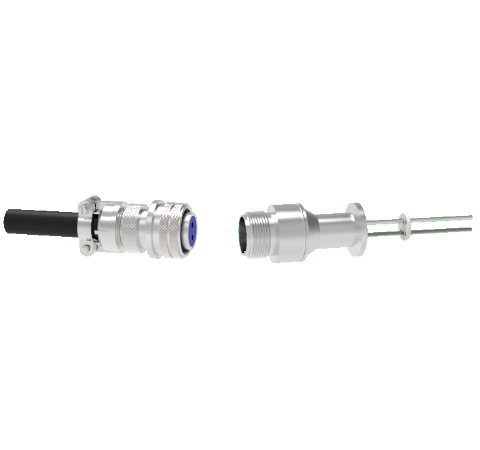

2 Pin 5015 Style Circular Connector, 700V, 23 Amp, Molybdenum Conductors in a KF16 Flange With Plug

2 Pin 5015 Style Circular Connector, 700V, 23 Amp, Molybdenum Conductors in a KF16 Flange With Plug
  • Number of Conductors:2
  • Style:Circular - 5015 Series
  • Voltage: 700 Volts
  • Current: 23.0 Amps
  • Mount:KF16
2 Pin 5015 Style Circular Connector, 700V, 23 Amp, Molybdenum Conductors in a KF16 Flange With Plug
PART NUMBER:
KT13302-02
PRICE:
$264.00 USD
Drawing Not Available
Contact Us for 3D Model
Product Specifications:
Number of Conductors 2
Style Circular - 5015 Series
Voltage 700 Volts
Current 23.0 Amps
Mount Style KF16
Conductor Diameter 0.094 Inches
Conductor Material Molybdenum
Temperature Range -25 to 125 °C
Pressure Maximum 0 psig
Plug Included

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
