FA23869-04

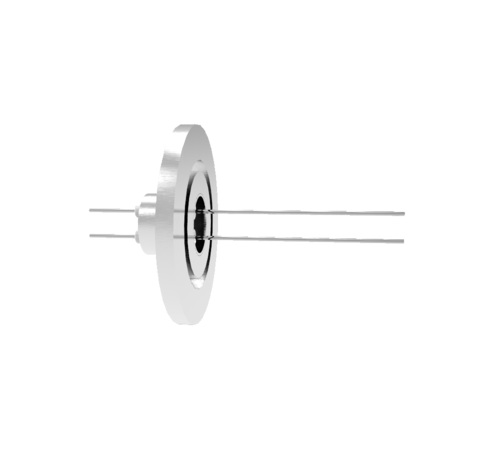

0.032 Conductor Diameter 2 Pin 2kV 1.1 Amp 304 Stn. Stl. Conductor in a KF25

0.032 Conductor Diameter 2 Pin 2kV 1.1 Amp 304 Stn. Stl. Conductor in a KF25
0.032 Conductor Diameter 2 Pin 2kV 1.1 Amp 304 Stn. Stl. Conductor in a KF25
PART NUMBER:
FA23869-04
PRICE:
$133.50 USD
Login to Download 3D
Product Specifications:
Number of Conductors 2
Style Power
Voltage 2,000 Volts
Current 1.1 Amps
Mount Style KF25
Conductor Diameter 0.032 Inches
Conductor Material 300 Series Stn. Stl.
Temperature Range -25 to 205 °C
Pressure Maximum 0 psig
Plug Other

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
