FA14390

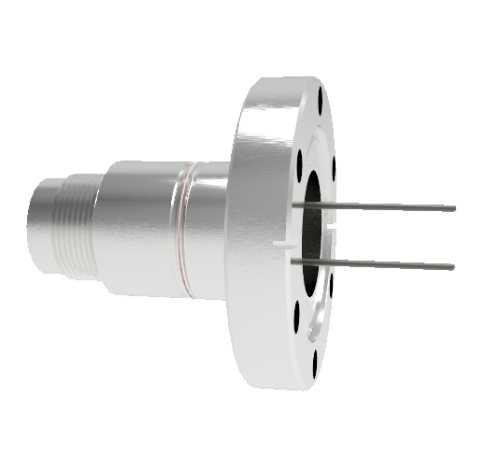

2 Pin, 12kV, 13 Amp Feedthrough, .062 Inch Diameter Molybdenum Conductors, CF2.75, Without Plug

2 Pin, 12kV, 13 Amp Feedthrough, .062 Inch Diameter Molybdenum Conductors, CF2.75, Without Plug
  • Number of Conductors:2
  • Style:High Voltage
  • Voltage: 12000 Volts
  • Current: 13.0 Amps
  • Mount:CF2.75
2 Pin, 12kV, 13 Amp Feedthrough, .062 Inch Diameter Molybdenum Conductors, CF2.75, Without Plug
PART NUMBER:
FA14390
PRICE:
$444.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 2
Style High Voltage
Voltage 12,000 Volts
Current 13.0 Amps
Mount Style CF2.75
Conductor Diameter 0.062 Inches
Conductor Material Molybdenum
Temperature Range -269 to 450 °C
Pressure Maximum Call for psig
Plug Available

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
