FA14966-04

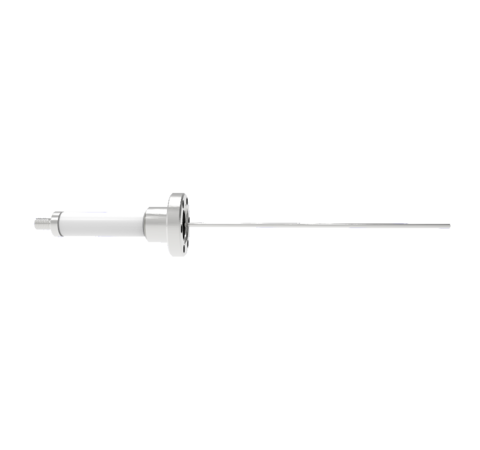

0.094 Conductor Diameter 1 Pin 20kV 3.6 Amp 304 Stn. Stl. Conductor in a CF1.33
![0.094 Conductor Diameter 1 Pin 20kV 3.6 Amp 304 Stn. Stl. Conductor in a CF1.33](https://www.solidsealing.com/img/products/FA14966-04.png)
![0.094 Conductor Diameter 1 Pin 20kV 3.6 Amp 304 Stn. Stl. Conductor in a CF1.33](https://www.solidsealing.com/img/products/FA14966-04.png)
Product Specifications:
Number of Conductors | 1 |
Style | Power |
Voltage | 20,000 Volts |
Current | 3.6 Amps |
Mount Style | CF1.33 |
Conductor Diameter | 0.094 Inches |
Conductor Material | 300 Series Stn. Stl. |
Temperature Range | -269 to 450 °C |
Pressure Maximum | 250 psig |
Plug | Other |
All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
