FA29169-04

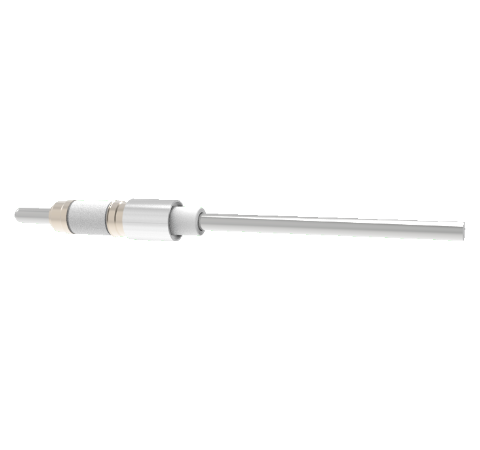

0.250 Conductor Diameter 1 Pin 25kV 12 Amp 304 Stn. Stl. Conductor Ceramic Extension on Vacuum Side Weld

0.250 Conductor Diameter 1 Pin 25kV 12 Amp 304 Stn. Stl. Conductor Ceramic Extension on Vacuum Side Weld
  • Number of Conductors:1
  • Style:Power
  • Voltage: 25000 Volts
  • Current: 12.0 Amps
  • Mount:Weld
0.250 Conductor Diameter 1 Pin 25kV 12 Amp 304 Stn. Stl. Conductor Ceramic Extension on Vacuum Side Weld
PART NUMBER:
FA29169-04
PRICE:
$94.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 1
Style Power
Voltage 25,000 Volts
Current 12.0 Amps
Mount Style Weld
Conductor Diameter 0.250 Inches
Conductor Material 300 Series Stn. Stl.
Temperature Range -269 to 450 °C
Pressure Maximum 750 psig
Plug Available

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.

Get in touch to place an order

Complete the inquiry form to request more information and discuss your application with one of our representatives. As always, be sure to ask about volume discounts. SST reserves the right to modify pricing at any time.
