FA13481

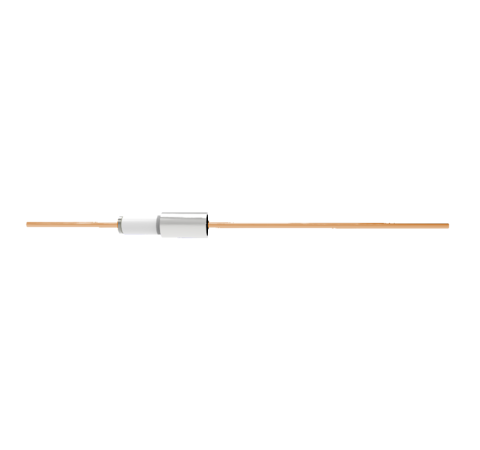

1 kV, 16 Amp Feedthrough, 0.032 Inch Diameter Copper Conductor on 0.154 Inch weld adapter

1 kV, 16 Amp Feedthrough, 0.032 Inch Diameter Copper Conductor on 0.154 Inch weld adapter
  • Number of Conductors:1
  • Style:Power
  • Voltage: 1000 Volts
  • Current: 16.0 Amps
  • Mount:Weld
1 kV, 16 Amp Feedthrough, 0.032 Inch Diameter Copper Conductor on 0.154 Inch weld adapter
PART NUMBER:
FA13481
PRICE:
$28.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 1
Style Power
Voltage 1,000 Volts
Current 16.0 Amps
Mount Style Weld
Conductor Diameter 0.032 Inches
Conductor Material Copper
Temperature Range -80 to 450 °C
Pressure Maximum 3500 psig
Plug Other

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
