FA15729

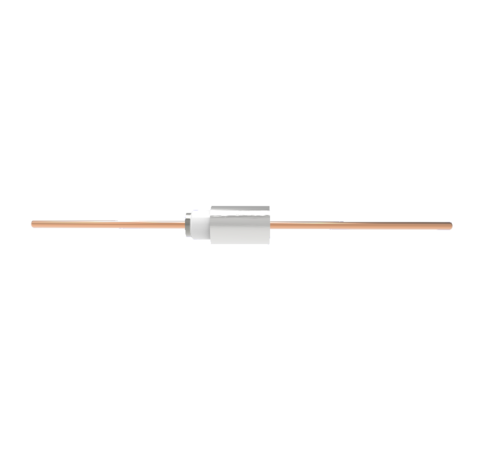

0.050 Conductor Diameter 1 Pin 2kV 27 Amp Copper Conductor

0.050 Conductor Diameter 1 Pin 2kV 27 Amp Copper Conductor
  • Number of Conductors:1
  • Style:Power
  • Voltage: 2000 Volts
  • Current: 27.0 Amps
  • Mount:Weld
0.050 Conductor Diameter 1 Pin 2kV 27 Amp Copper Conductor
PART NUMBER:
FA15729
PRICE:
$22.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 1
Style Power
Voltage 2,000 Volts
Current 27.0 Amps
Mount Style Weld
Conductor Diameter 0.050 Inches
Conductor Material Copper
Temperature Range -80 to 450 °C
Pressure Maximum 3500 psig
Plug Other

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
