FA17569

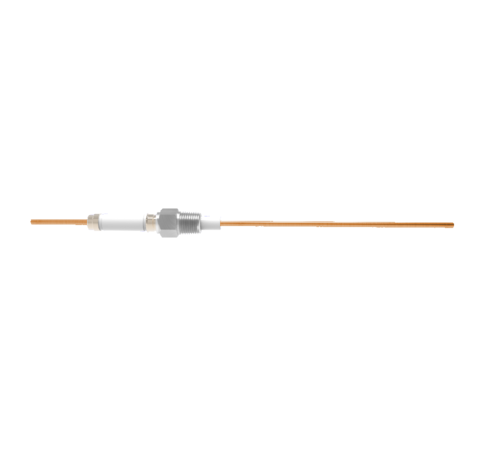

0.094 Conductor Diameter 1 Pin 14kV 55 Amp Copper Conductor in a NPT 1/8

0.094 Conductor Diameter 1 Pin 14kV 55 Amp Copper Conductor in a NPT 1/8
0.094 Conductor Diameter 1 Pin 14kV 55 Amp Copper Conductor in a NPT 1/8
PART NUMBER:
FA17569
PRICE:
$115.00 USD
Login to Download 3D
Product Specifications:
Number of Conductors 1
Style Power
Voltage 14,000 Volts
Current 55.0 Amps
Mount Style NPT 1/8
Conductor Diameter 0.094 Inches
Conductor Material Copper
Temperature Range -260 to 230 °C
Pressure Maximum 1500 psig
Plug Other

All SST parts are customizable! We regularly make modifications to our catalog parts and offer totally custom feedthroughs and hermetic connectors. If your project requires changes from what you see listed in these product specifications, please reach out to us using the contact form on this page.
